WAREHOUSE FLOORING SOLUTION FOR HEAVY EQUIPMENT, ROLLING CARTS & PALLET JACKS

WHEN DURABILITY MATTERS CHOOSE RESINDEK® INDUSTRIAL FLOORING

The team representing the ResinDek product line from UW Solutions knows and understands the importance of having the right flooring product for the right application. That's why we offer a variety of ResinDek warehouse flooring panels in different thicknesses, densities, and with different surface finishes.

Since 1994, ResinDek flooring panels have been installed in manufacturing facilities, distribution centers, warehouses, and cold storage facilities for major corporations worldwide. The guiding principle then and now is "We don't just make better mezzanine floors… We make mezzanine floors better." We are committed to offering solutions that enhance ergonomics in work environments, minimize environmental footprints, and deliver substantial value to professionals across various industries.

Whether you need a long-lasting industrial flooring solution for your ground floor, work platform, or mezzanine system, we’ve got you covered.

With this objective in mind, UW Solutions is committed to:

• Better products with easier installation
• Application-specific flooring for all industries
• Excellent field support and product testing
• LEED® and FSC® certified products
• Material and labor savings for customers

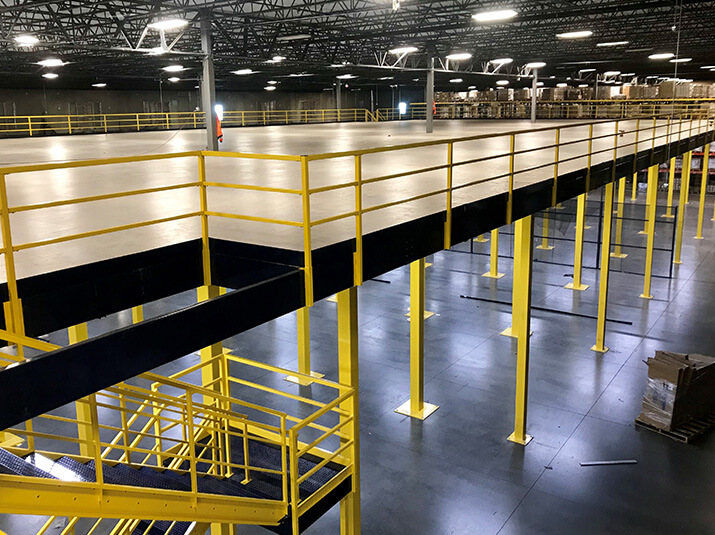

RESINDEK® WAREHOUSE MEZZANINE FLOOR PANELS FOR HEAVY EQUIPMENT, ROLLING CARTS & PALLET JACKS

At the forefront of mezzanine floor design, ResinDek composite engineered flooring panels are exclusively manufactured by UW Solutions. These panels boast a durable showcase appearance that is easy to maintain and are supported by a 10-year warranty covering pallet jack loads.

All ResinDek industrial flooring panels:

• Can contribute towards earning points for LEED® qualified buildings
• Are certified by SCS Global to have No Added Formaldehyde
• Are available with FSC® Certification under the license code FSC-C124474, when required.
• Independently evaluated and approved for use in Types I-V construction and as part of a fire-resistance-rated assembly by the IAPMO Uniform Evaluation Services. United States ER Number 467. Canada ER Number UEL 5027.

In addition, ResinDek® flooring system can be UL Classified for up to a 2-hour fire-rated assembly under UL Design No. L701 and UL File No. R39265.

ResinDek panels can contribute towards earning points for LEED® qualified buildings. All ResinDek panels have been certified by SCS Global to have No Added Formaldehyde. Additionally, when required ResinDek panels are available with FSC® Certification under the license code FSC-C124474.

ResinDek panels have been independently evaluated and approved for use in Types I-V construction as part of a fire-resistance rated assembly by the IAPMO Uniform Evaluation Services. United States ER Number 467. Canada ER Number UEL 5027. In addition, ResinDek® flooring system can be UL Classified for up to a 2-hour fire rated assembly under UL Design No. L701 and UL File No. R39265.

ResinDek panels have the proven structural integrity to support live and dead pallet jack loads from 2,000 – 8,000 lbs. A minimum of 20 GA corrugated metal B-Deck is recommended on all ResinDek flooring projects where live and dead loads are under 2,500 lbs. 18 GA corrugated metal B-Deck should be used on live and dead loads that exceed 2,500 lbs. ResinDek Xspan and ResinDek Xspan FR is a structural flooring solution that does not require B-Deck.

NOTES FOR TABLES ABOVE:

• Testing was completed with polyurethane caster wheels and any deviation or alternative wheels such as crowned, steel or plastic could void the warranty. Contact the ResinDek brand of UW Solutions for more information.
• For flooring used with corrugated b-deck: Please note load values above are calculated on 36" beam spacing, increased spacing will reduce capacity. Floor deflection is L/240.
• For flooring solutions with no b-deck: All allowable loads are based on a two span condition. Uniform load values are based on L/240 deflections, any deviation can positively or negatively impact these values. Please contact UW Solutions' ResinDek brand for other span conditions. The calculations and load tables to the left have been compiled based on specified calculation methods and assumptions. The loads provided are for the purpose of information for preliminary studies and can not be used as a reference in structural studies. Contact an accredited engineering office or architect to perform a complete stability analysis.

---

RESINDEK® INDUSTRIAL FLOOR FINISHES FOR HEAVY EQUIPMENT, ROLLING CARTS & PALLET JACKS

RESINDEK WAREHOUSE FLOORING FINISHES

Choose from:

• Gray Diamond Seal®, the industry choice for heavy rolling pallet jacks,
• Gray Diamond Seal ESD when electrostatic dissipative is required, or
MetaGard® GVT with a steel surface for aggressive dragging areas such as pallet flows or drop zones.
• ResinDek Unfinished (UF), if you are looking for the most economical flooring solution that still comes with a 10-year product warranty.

Be sure to ask us how to design a hybrid flooring solution that is extremely cost-effective and tailored to meet the needs of each individual project.

---

RESINDEK® SHELVING SYSTEM FOR WAREHOUSE MEZZANINE FLOOR

The ResinDek® Shelving System aids operations in optimizing the storage and organization of case goods and individual components within industrial racks and shelves. This system consists of ResinDek horizontal shelving, ResinDek vertical dividers, steel or lumber supports spanning the rack beams (including stepped options), and vertical end stops. Custom machined to suit specific storage requirements, the system can be easily installed without the need for hardware.

Because safety is paramount in warehousing applications, the ResinDek Shelving System has been independently evaluated by IAPMO Uniform Evaluation Services to verify compliance with International Building Code (IBC) regulations for installation in Types I-V Building construction. When used in applications that require flue space, the shelves can be easily fastened to the shelf supports to maintain proper opening size. Further, ResinDek Shelving has received Seizmic's S Mark for its rated load capacity.
