RESINDEK® XSPAN® FR

FLAME RESISTANT MEZZANINE DECKING SYSTEM

ResinDek Xspan FR is a fire-resistant structural mezzanine floor solution that does not require metal corrugated substructure. It meets ASTM E-84 Class "A" flame spread less than 25, meets UK Class "0", and meets European standards B-Class (B_FL-s1 | B-s1,d0) for both top and bottom.

The ResinDek Xspan FR structural floor solution can accommodate 125 psf dead loads at 32" center supports, as well as 2,300 lb. rolling pallet jack loads and 1,500 lbs mobile robot loads. Please refer to the load span tables below for other allowable uniform pallet jack loads, AGV, and AMR mobile robot loads. Moreover, ResinDek Xspan FR flooring panels have received approval from IBC Code Officials for use as a structural flooring system in specific applications. Structural support must undergo review and approval by UW Solutions' ResinDek brand and must be capable of supporting floor loads at designated intervals. For further information, please reach out to us and/or your local building code official.

Panel Thickness:1-1/8"

Panel Weight:5.2 psf
6.6 psf with MetaGard® finish

Pallet Jack & Product Load Limits:pallet jack rolling loads
up to 2,300 lbs with 125 psf
uniform loads at 32" center supports

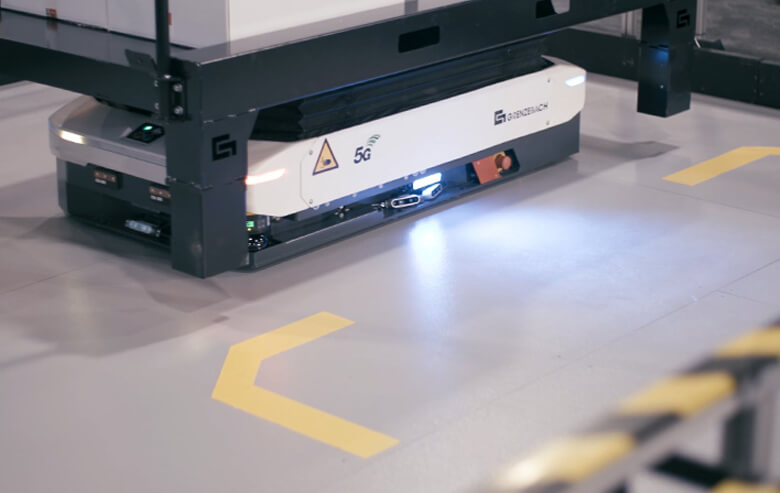

Mobile Robot & Product Load Limits:AGV/AMR rolling loads
up to 1,500 lbs with 125 psf
uniform loads at 32" center supports

^* Reference the Load Span Tables below for Allowable Uniform & Total Product Loads.

^* See the Full Product Comparison Chart here.

REQUEST A QUOTE CONTACT US

PRODUCT DESCRIPTION

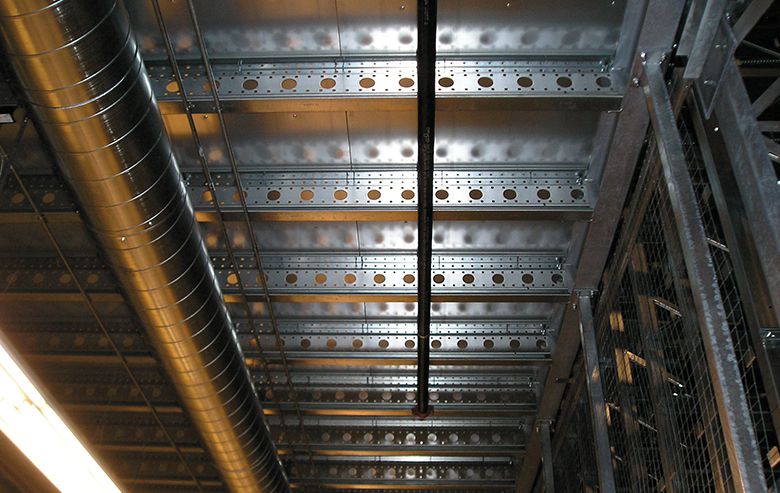

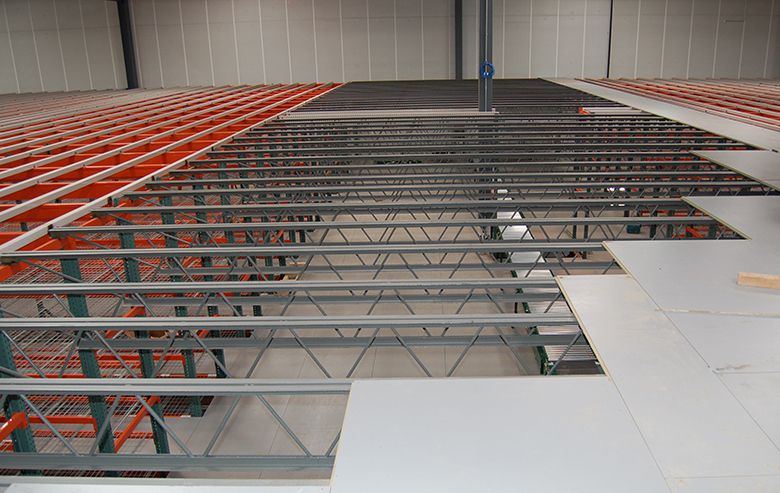

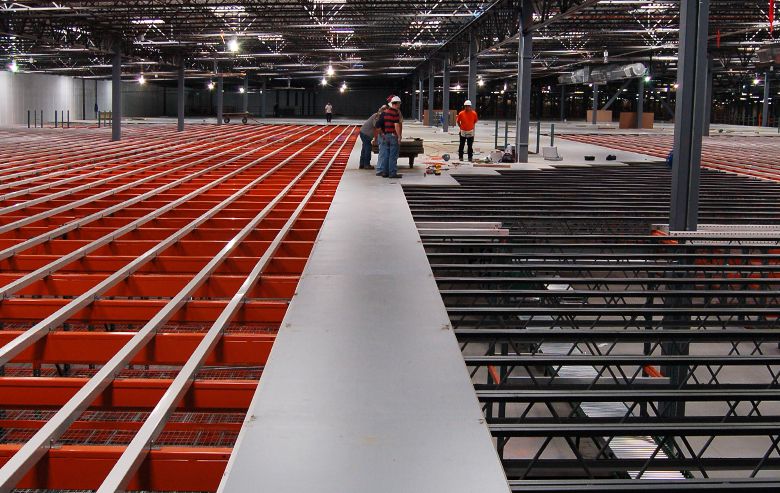

ResinDek fire-resistant flooring panels are custom manufactured and available in sizes up to 4' x 10' (1206 mm x 3048 mm) with our proprietary coatings and up to 4' x 8' (1206 mm x 2438 mm) with our MetaGard® steel surface for extreme wear conditions. The underside comes standard with a white reflective underside. ResinDek tongue and groove configurations promote effective panel to panel wheel load transfers. When required, tongue and groove configurations are available on all 4 sides.

ResinDek Xspan FR engineered flooring panels are custom manufactured with specially sorted and processed wood fibers, customized formaldehyde free resins, and a wax emulsifier for moisture resistance. The ingredients are combined and compressed under extremely high pressure and temperature, resulting in a panel with superior physical properties.

All ResinDek flooring panels include a standard 10-year product warranty that covers pallet jack loads for a decade! UW Solutions warrants all ResinDek panels to be structurally sound, capable of safely carrying the specified design loads, and free from defects. For full details on the ResinDek 10-year product warranty, please refer to our documentation.

RESINDEK XSPAN FR FOR AGVS & AMRs – Single Panel Solution – No Corrugated B-Deck Required

Product Name	Beam Spacing	16"	24"	32"
ResinDek® Xspan Panel Thickness: 1-1/8"	Uniform Loads (lbs/ft²)	375	225	125
	Total Robot & Product Loads (lbs)	2,500	2,000	1,500
	Contact Pressure (psi)*	900	750	600

RESINDEK XSPAN FR FOR HEAVY EQUIPMENT, ROLLING LOADS & PALLET JACKS – Single Panel Solution – No Corrugated B-Deck Required

Product Name	Beam Spacing	16"	24"	32"	40"	48"
ResinDek® Xspan Panel Thickness: 1-1/8"	Uniform Loads (lbs/ft²)	375	225	125	75	50
	Total Pallet Jack & Product Loads (lbs)	3,000	2,700	2,300	2,000	1,500

View Chart in Metrics

NOTES FOR TABLES ABOVE:

Testing was completed with polyurethane caster wheels and any deviation or alternative wheels such as crowned, steel or plastic could void the warranty. Contact the ResinDek brand of UW Solutions for more information.
Contact pressure values are to be used as a guide. Please consult the factory for specific robot usage.
For flooring solutions without B-deck: All allowable loads are determined based on a two-span condition. Uniform load values are calculated considering L/240 deflections; any deviation may affect these values positively or negatively. For inquiries regarding other span conditions, please reach out to UW Solutions' ResinDek brand.
The calculations and load table above have been compiled based on specified calculation methods and assumptions.The loads provided are for the purpose of information for preliminary studies and cannot be used as a reference in structural studies. Contact an accredited engineering office or architect to perform a complete stability analysis.
